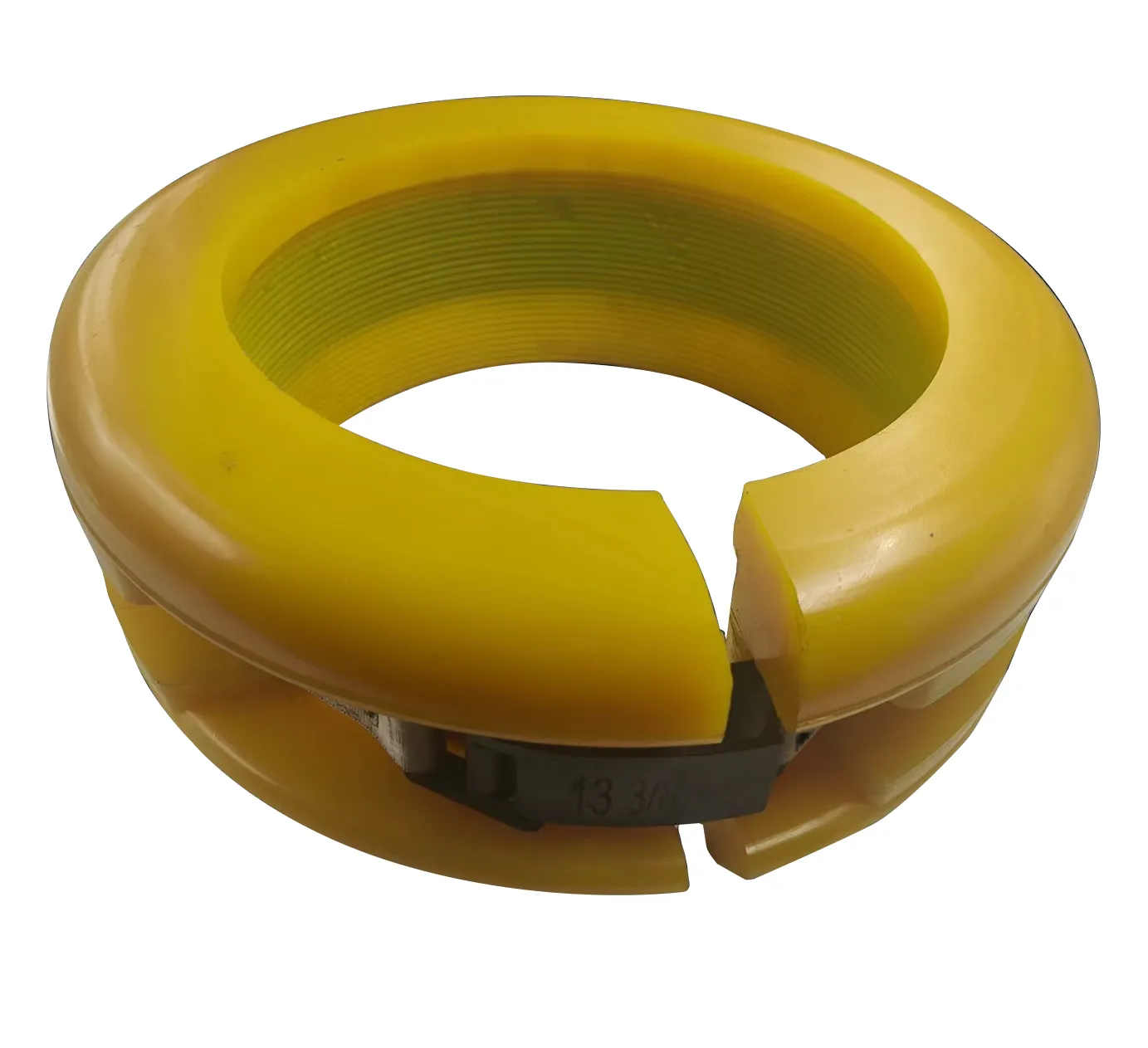

Function and application analysis of quick release wire guard

I. Core Functions

Quick loading and unloading protection

It is used to wrap the casing buckle quickly during loading/unloading and transportation of petroleum casing, avoiding damage to the wire buckle due to collision or friction, and safeguarding the integrity of the thread.

Dynamic adaptability

Suitable for different sizes (e.g. 2 3/8“ to 20”) and wall thicknesses of casing, and adjustable structure to meet the needs of special buckle type.

Structural Design

Core components

Shell + mandrel: the cylindrical shell is socketed on the outside of the support seat, and the mandrel realizes axial movement through the conical design.

Top rod + wedge: the top rod passes through the radial hole of the support seat, and the wedge triggers the displacement of the mandrel after striking, realizing the rapid dislodgement of the wire guard.

Material Characteristics

The main body is made of polyethylene (PE) mixed with plastic color masterbatch, with low temperature resistance (-46℃) and impact resistance.

Application Advantages

Ease of operation

Mechanical tapping can be removed, significantly reducing manual operation time and avoiding the secondary damage to threads caused by traditional wire guard removal.

Reliability and Durability

Firmly fixed, can withstand vibration and impact during transportation, ensuring thread protection when casing is stored for a long time.

It is suitable for high temperature and high pressure wells, horizontal wells and other complex working conditions to extend the service life of casing.

Scenarios

Conventional casing transportation

Used for loading and unloading of oil pipe and casing to prevent thread scratching or deformation.

Special buckle protection

Support customized production to meet the protection needs of non-standard buckle type (such as API special thread).

By optimizing the mechanical structure and material properties, the Quick Release Wire Guard has become an indispensable protection tool for oil pipe transportation and storage.
