In the future development, wire guard manufacturers will face more challenges and opportunities. Wire manufacturers can continue to improve product quality and added value by strengthening technological innovation and product research and development; by strengthening brand building and marketing, to open up a broader market space; by strengthening the introduction of talent and training, to enhance the level of enterprise management and competitiveness, to achieve sustainable development. The future development of the wire guard manufacturer is looking forward to a broad outlook, looking forward to a better tomorrow.

Product Usage:

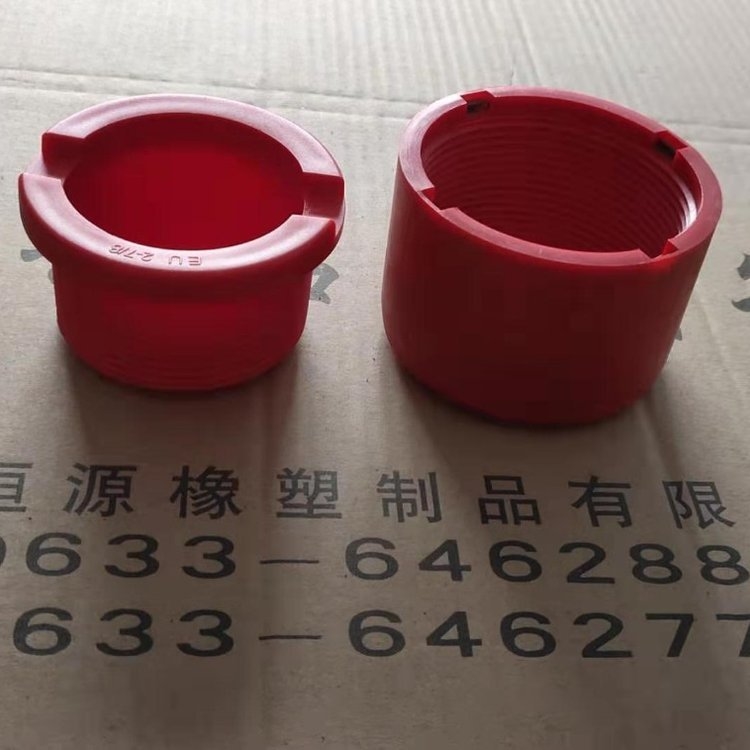

This product is a necessary supporting product for oil-specific drill pipes, drilling tools, etc. It plays the role of protecting the steel pipe threads. Prevent the threaded end of the pipe from being damaged during loading and unloading, transportation and storage.

Function, design and application analysis of oil drill pipe thread protection

First, the core function

Thread and sealing surface protection

During transportation, loading and unloading and storage, the wire guard covers the threads and sealing surfaces of the drill pipe, preventing deformation or abrasion caused by collision and friction, and guaranteeing the sealing and reliability of the subsequent connection.

Fast loading and unloading adaptability

Adopting mechanical clamp or knocking trigger structure (such as mandrel displacement design), the wire guard can be installed and removed quickly, which significantly improves the operational efficiency.

Structural design

Universal wire guard

Clamp + Gear Drive: Through the active gear to drive the driven gear and arc clamp rotation, to realize the automatic tightening or loosening of the wire guard cap, single personnel can operate.

Shell + mandrel assembly: the shell wraps the support seat, and the axial movement of the mandrel triggers the wedge iron to knock, so that the wire guard can be quickly dislodged, adapting to the needs of different sizes of drill pipes.

Customization Options

Support non-standard buckle type (such as API special thread) adaptation, can adjust the inner diameter and wall thickness of the wire guard, to meet the needs of complex well type.

Material Characteristics

Mainstream materials

Polymer materials (such as polyethylene PE): low temperature resistance (-46 ℃), impact resistance and lightweight, suitable for conventional transportation environment.

Steel-plastic composite material: the outer layer is metal reinforced structure, the inner layer is covered with wear-resistant plastic, taking into account the strength and corrosion resistance, suitable for high temperature and high pressure wells.

Application Advantages

Efficiency and Economy

Mechanical loading and unloading design reduces labor time and operating intensity.

The unit price of wire guard is low (e.g. PE material is about 1-8 RMB/pc), so the long-term cost is controllable.

Durability Improvement

Protecting threads reduces wear and tear, prolonging the life of drill pipe and reducing the cost of frequent replacement.

Shock and vibration resistant design ensures that the wire guard is firmly fixed during long-distance transportation.

V. Suggestions for use and maintenance

Standardized operation

When installing, make sure that the protection wire and the threads fit perfectly to avoid skewing, which leads to uneven local force.

Priority should be given to the use of special tools (e.g. quick-release knockout device) to reduce the risk of secondary damage to the threads.

Regular maintenance

Check the cracks or deformation on the surface of the thread guard, and replace the aging parts in time.

Keep clean and dry when storing, avoid chemical corrosion and impurity intrusion.
